Stringa connessione DB per hosting 7hostfree.com

Stringa di connessione ad un db Access 2002-2003 .mdb con hosting gratuito 7host.com

Path: ./App_Data/mydb.mdb

|DataDirectory| = App_Data



<?xml version=”1.0″?>
<!–
Per ulteriori informazioni su come configurare l’applicazione ASP.NET, visitare il sito Web all’indirizzo
http://go.microsoft.com/fwlink/?LinkId=169433
–>
<configuration>
<connectionStrings>
<add name=”database” connectionString=”Provider=Microsoft.Jet.OleDb.4.0;Data Source=|DataDirectory|mydb.mdb;Persist Security Info=True”/>
</connectionStrings>
<system.web>
<customErrors mode=”Off”/>
<globalization culture=”IT-it” uiCulture=”IT-it”/>
</system.web>
</configuration>

Inviare dati da Arduino ad una pagina web asp.net 4 / C#

Finalmente oggi ci sono riuscito!
Sono riuscito ad inviare dati da arduino ad una pagina web da me creata.

Vediamo come

Pagina web:
acquire.aspx.cs

using System;
using System.Collections.Generic;
//using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;

public partial class acquire : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        TextBox1.Text = Request.QueryString["username"];
        TextBox2.Text = Request.QueryString["password"];
        TextBox3.Text = Request.QueryString["datastream"];
        TextBox4.Text = Request.QueryString["value"];
    }
}



Frontend:
acquire.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="acquire.aspx.cs" Inherits="acquire" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
<asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
<asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
<asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
</div>
</form>
</body>
</html>



Arduino Sketch:

#include <SPI.h>
#include <Ethernet.h>

byte mac[] = {
  0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
byte ip[] = {
  192,168,2,20 };
byte server[] = {
  46,16,168,17 };

Client client(server, 80);

void setup() {
  Ethernet.begin(mac, ip);
  Serial.begin(9600);
}

void loop()
{
  delay(1000);
  Serial.println("connecting...");
  client.connect();
  if (client.connected()) {
    Serial.println("connected");
    client.println("GET http://antrea.7hostfree.com/acquire.aspx?username=USERFROMARDUINO&password=PASSFROMARDUINO&datastream=DATASTREAMFROMARDUINO&value=VALUEFROMARDUINO HTTP/1.1");
    client.println ( "Host: http://antrea.7hostfree.com" ) ;
    client.println();
  }
  else {
    Serial.println("connection failed");
  }
  if (client.available()) {
    do {
      char c = client.read();
      Serial.print(c);
    }
    while (client.available());
  }
  if (!client.connected()) {
    Serial.println();
    Serial.println("disconnecting.");
    client.stop();
  }
}

Usare Pachube con più datastream

Oggi ho giocato un pò con il codice per inviare più dati su più datastream di pachube.
Per ogni datastream si possono mandare solo un dato alla volta: non si possono mandare contemporaneamente più dati da rappresentare su un solo grafo o più dati con un unica PUT.
Il modo più semplice per arginare tale problema è usare un algoritmo di scheduling Round Robin: inviare i dati a turno.

Esempio:
*stesso FEED

loop
PUT su DATASTREAM_1 del DATO_X
wait 12secondi
PUT su DATASTREAM_2 del DATO_Y
wait 12secondi

Il risultato è stato questo:

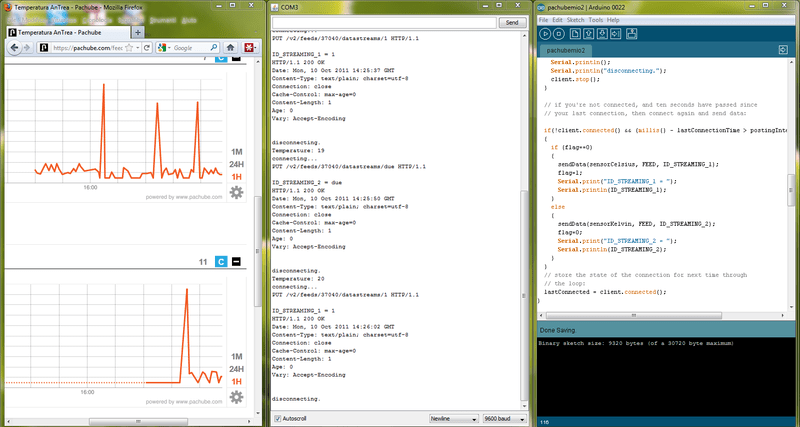

capturebez

Codice:

/*
  Pachube sensor client

 This sketch connects an analog sensor to Pachube (http://www.pachube.com) with one feed
 and two datastreams using a Wiznet Ethernet shield. You can use the Arduino Ethernet shield, or
 the Adafruit Ethernet shield, either one will work, as long as it's got
 a Wiznet Ethernet module on board.

 Circuit:
 * Analog sensors attached to analog in 2 and 3
 * Ethernet shield attached to pins 10, 11, 12, 13

 This code is in the public domain.

 UPDATE:

 *Using Pachube's V2 API
 *Analog sensor attached to analog in 2 and 3
 *New pachube.com IP
 *Using one feed and two datastreams: first for analog 2 and second for analog 3

 08/10/2011

 by Andrea Esposito
 www.blackstufflabs.com

 */

#include <SPI.h>
#include <Ethernet.h>

// assign a MAC address for the ethernet controller.
// fill in your address here:
byte mac[] = {
  0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED};
// assign an IP address for the controller:
byte ip[] = {
  192,168,1,20 };
byte gateway[] = {
  192,168,1,1};
byte subnet[] = {
  255, 255, 255, 0 };

//  The address of the server you want to connect to (pachube.com):
byte server[] = {
  173,203,98,29 };

// initialize the library instance:
Client client(server, 80);

long lastConnectionTime = 0;        // last time you connected to the server, in milliseconds
boolean lastConnected = false;      // state of the connection last time through the main loop
const int postingInterval = 12000;  //delay between updates to Pachube.com
short flag=0;

void setup() {
  // start the ethernet connection and serial port:
  Ethernet.begin(mac, ip);
  Serial.begin(9600);
  // give the ethernet module time to boot up:
  delay(1000);
}

void loop() {

  //FEED number on your account settings
  //ex.: String FEED=37040;
  String FEED=YOUR_FEED_HERE;

  //ID_DATASTREAMS setted by you
  //ex.:String ID_STREAMING_1="1";
  String ID_STREAMING_1="YOUR_FIRST_ID_STREAM_HERE";
  String ID_STREAMING_2="YOUR_SECOND_ID_STREAM_HERE";

  // voltage=5v but on my board is 4.91v
  float voltage=4.91;

  // read the analog sensor:
  //LM35 on A2
  int sensorCelsius = analogRead(2);
  sensorCelsius = (voltage * sensorCelsius * 100.0)/1024.0;

  //LM335 on A3
  int sensorKelvin = analogRead(3);
  sensorKelvin = (voltage * sensorKelvin * 100.0)/1024.0;
  //sensorKelving-=273.15; //if you want it in C°

  // if there's incoming data from the net connection.
  // send it out the serial port. This is for debugging
  // purposes only:
  if (client.available()) {
    char c = client.read();
    Serial.print(c);
  }

  // if there's no net connection, but there was one last time
  // through the loop, then stop the client:
  if (!client.connected() && lastConnected) {
    Serial.println();
    Serial.println("disconnecting.");
    client.stop();
  }

  // if you're not connected, and ten seconds have passed since
  // your last connection, then connect again and send data:
  if(!client.connected() && (millis() - lastConnectionTime > postingInterval))
  { //Round Robin
    if (flag==0) //sending data to first datastream
    {
      sendData(sensorCelsius, FEED, ID_STREAMING_1);
      flag=1;
      Serial.print("ID_STREAMING_1 = ");
      Serial.println(ID_STREAMING_1);
    }
    else
    { //sending data to second datastream
      sendData(sensorKelvin, FEED, ID_STREAMING_2);
      flag=0;
      Serial.print("ID_STREAMING_2 = ");
      Serial.println(ID_STREAMING_2);
    }
  }
  // store the state of the connection for next time through
  // the loop:
  lastConnected = client.connected();
}

// this method makes a HTTP connection to the server:
void sendData(int thisData , String myfeed , String myid) {

  //Your API_KEY on your account settings
  String API_KEY="YOUR_API_KEY_HERE";

  // if there's a successful connection:
  if (client.connect()) {
    Serial.print("Temperature: ");
    Serial.println(thisData);
    Serial.println("connecting...");

    // send the HTTP PUT request.
    // fill in your feed address here:
    // PUT /v2/feeds/<feed_id>/datastreams/<datastream_id>
    String myput="PUT /v2/feeds/";
    myput+=myfeed;
    myput+="/datastreams/";
    myput+=myid;
    myput+=" HTTP/1.1n";
    Serial.println(myput);
    client.print(myput);

    client.print("Host: api.pachube.comn");
    // fill in your Pachube API key here:
    client.print("X-PachubeApiKey: ");
    client.print(API_KEY);
    client.print("n");
    client.print("Content-Length: ");

    // calculate the length of the sensor reading in bytes:
    int thisLength = getLength(thisData);
    client.println(thisLength, DEC);

    // last pieces of the HTTP PUT request:
    client.print("Content-Type: text/csvn");
    client.println("Connection: closen");

    // here's the actual content of the PUT request:
    client.println(thisData, DEC);

    // note the time that the connection was made:
    lastConnectionTime = millis();
  }
  else {
    // if you couldn't make a connection:
    Serial.println("connection failed");
  }
}

// This method calculates the number of digits in the
// sensor reading.  Since each digit of the ASCII decimal
// representation is a byte, the number of digits equals
// the number of bytes:

int getLength(int someValue) {
  // there's at least one byte:
  int digits = 1;
  // continually divide the value by ten,
  // adding one to the digit count for each
  // time you divide, until you're at 0:
  int dividend = someValue /10;
  while (dividend > 0) {
    dividend = dividend /10;
    digits++;
  }
  // return the number of digits:
  return digits;
}

Arduino & Pachube’s API V2

Oggi vorrei parlarvi di pachube.com e della mia ethernet shield.
In questi giorni mi è arrivata l’ethernet shield: una figata pazzesca.
Ancora devo approfondire il funzionamento ma ho già smanettato e fatta funzionare.

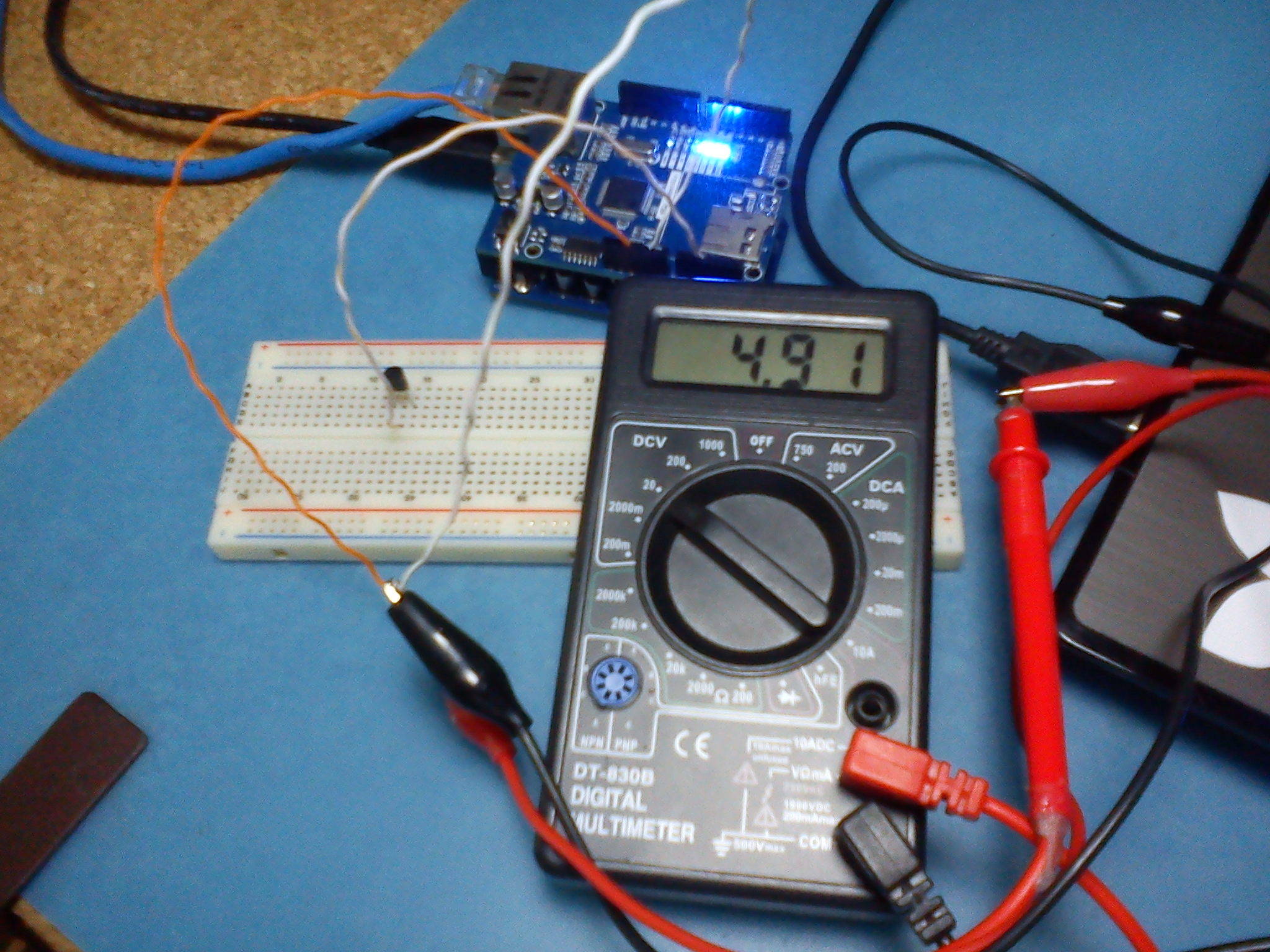

La preparazione dell’hardware è avvenuta in questo modo:

Per questo progetto ho collegato all’ethernet shield un sensore di temperatura LM35 al pin A2.
Più precisamente il pin centrale su A2, quello a sinistra a 5V e quello destro a GND:

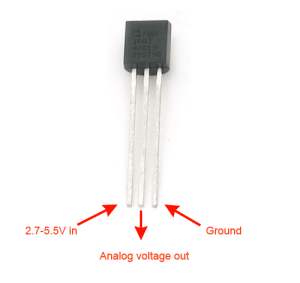

tmp36pinout

Non ho usato i pin A0 o A1 in quanto sono usati dall’ethernet shield per la protezione in scrittura di un eventuale SD sulla board… per recuperare tali pin, basterebbe tagliare la traccia sulla pcb.

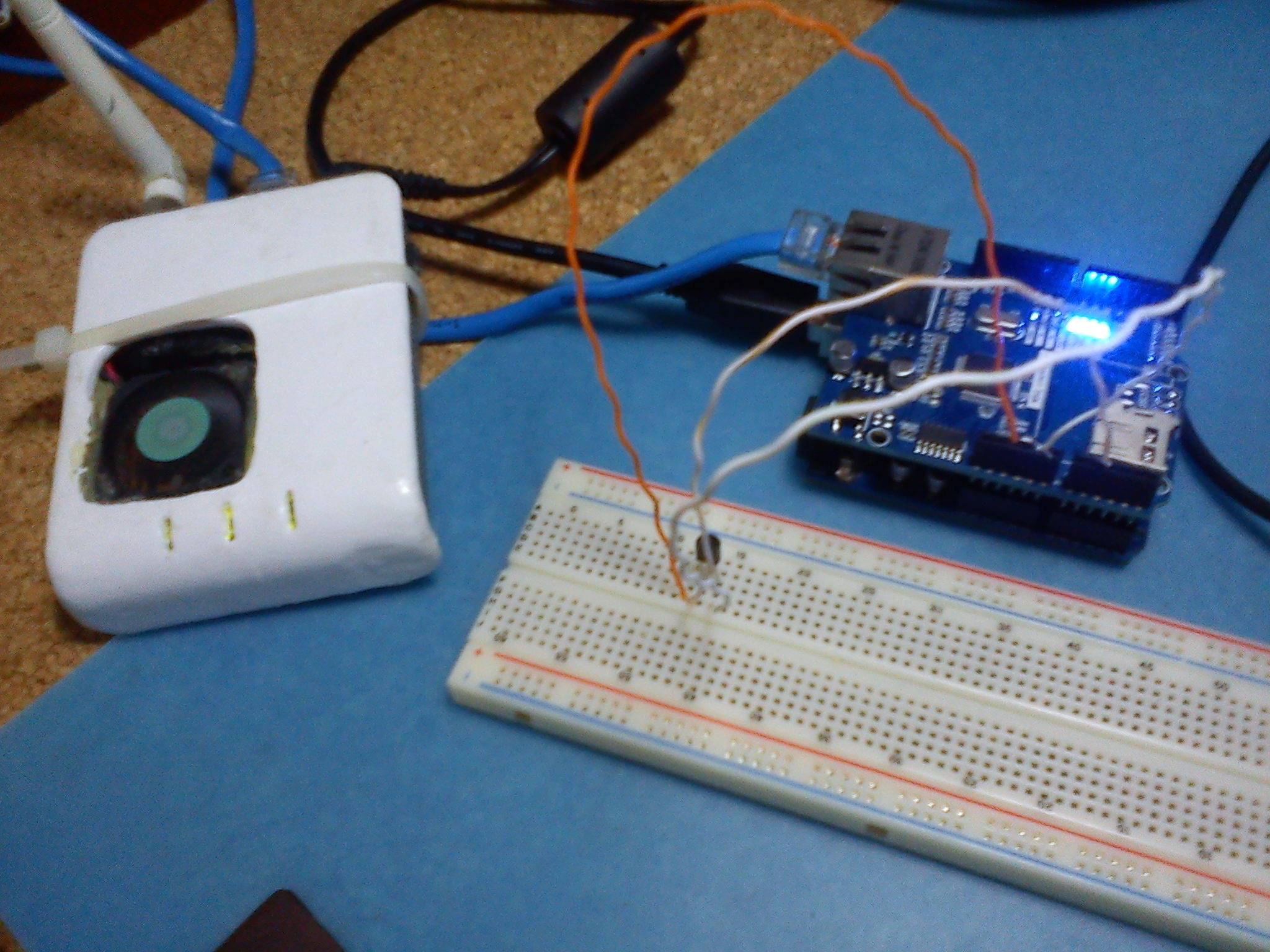

L’ethernet shield poi è stata collegata tramite cavo ethernet ad una fonera moddata con firmware dd-wrt e usabile come un normalissimo router… ma in mancanza di una fonera si può attacchare la shield ad un qualsiasi router.

Preparazione softare:
Nell’IDE di arduino già è fruibile un esempio (PachubeClient) che permette di sfruttare le API V1 di pachube.com per inviare il valore di un sensore collegato ad A0.
Una volta registrato al sito pachube.com, aver creato un feed, un datastream e una chiave di utilizzo; ho impostato tutti i valori nello sketch presente nell’ide.
Compile&upload e tutto funziona alla perfezione.

Unico problema è che lo sketch presente sull’ide utilizza le vecchie API di pachube.com: le V1
Il sito consiglia di utilizzare le nuove V2 lasciando, però, ancora fruibili le vecchie V1.

Ho modificato un pò il codice e in particolare la put scrivendola così come indica la documentazione V2: PUT V2
Update datastream: PUT /v2/feeds/<feed_id>/datastreams/<datastream_id>

Dove:
Feed_id: è l’inidentificativo univoco del proprio feed assegnato in automatico alla creazione da pachube.com
Datastream_id: è l’identificativo univoco di uno dei proprio stream assegnato manualmente dall’utente all’interno di un feed.

Il tutto funziona con le API V2… in giro non ho trovato molta documentazione a proposito delle V2.

Et voilà:

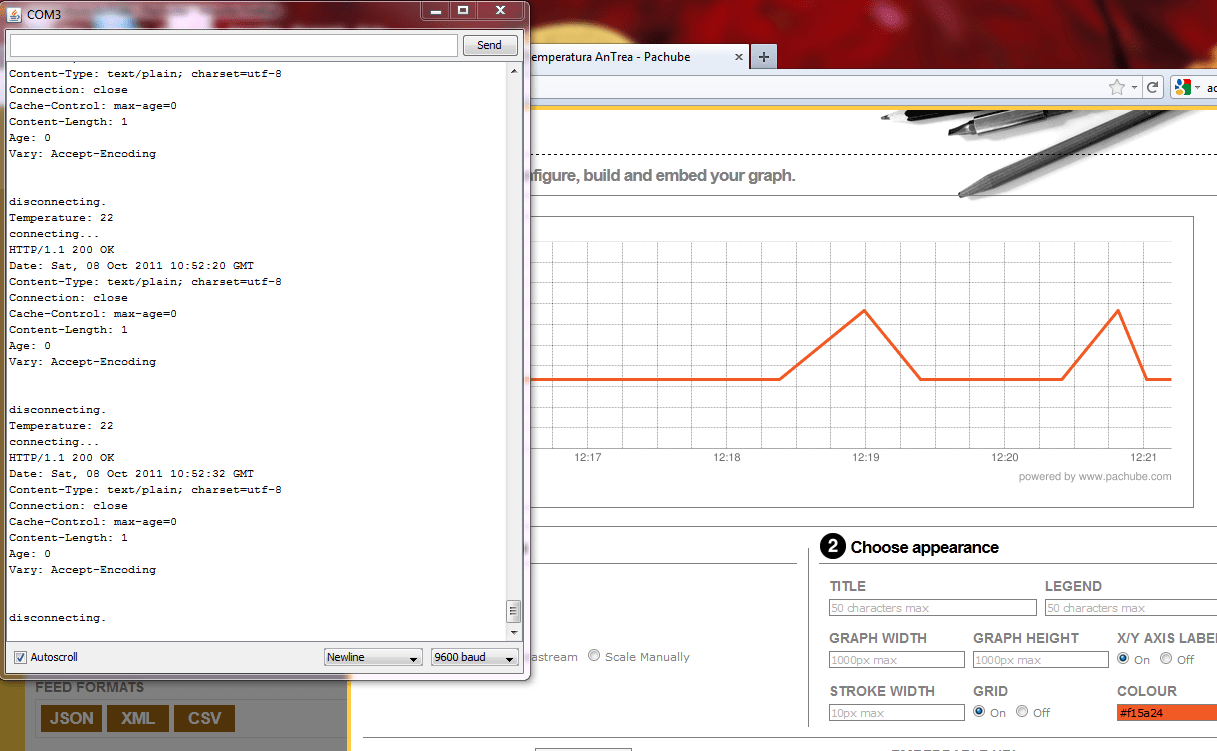

captureby

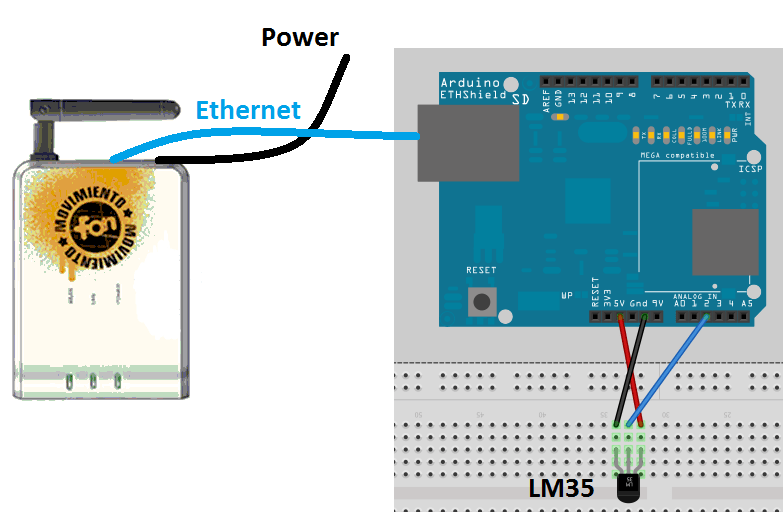

immagineoia









/*
  Pachube sensor client

 This sketch connects an analog sensor to Pachube (http://www.pachube.com)
 using a Wiznet Ethernet shield. You can use the Arduino Ethernet shield, or
 the Adafruit Ethernet shield, either one will work, as long as it's got
 a Wiznet Ethernet module on board.

 Circuit:
 * Analog sensor attached to analog in 2
 * Ethernet shield attached to pins 10, 11, 12, 13

 created 15 March 2010
 updated 4 Sep 2010
 by Tom Igoe

 http://www.tigoe.net/pcomp/code/category/arduinowiring/873
 This code is in the public domain.

 UPDATE:
 *Using Pachube's V2 API
 *Analog sensor attached to analog in 2
 *New pachube.com IP

 08/10/2011
 by Andrea Esposito
 www.blackstufflabs.com

 */

#include <SPI.h>
#include <Ethernet.h>

// assign a MAC address for the ethernet controller.
// fill in your address here:
byte mac[] = {
  0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED};
// assign an IP address for the controller:
byte ip[] = {
  192,168,1,20 };
byte gateway[] = {
  192,168,1,1};
byte subnet[] = {
  255, 255, 255, 0 };

//  The address of the server you want to connect to (pachube.com):
byte server[] = {
  173,203,98,29 };

// initialize the library instance:
Client client(server, 80);

long lastConnectionTime = 0;        // last time you connected to the server, in milliseconds
boolean lastConnected = false;      // state of the connection last time through the main loop
const int postingInterval = 12000;  //delay between updates to Pachube.com

void setup() {
  // start the ethernet connection and serial port:
  Ethernet.begin(mac, ip);
  Serial.begin(9600);
  // give the ethernet module time to boot up:
  delay(1000);
}

void loop() {
  // read the analog sensor:

  //LM35 on A2
  int sensorCelsius = analogRead(2);
  // voltage=5v but on my board is 4.91v
  float voltage=4.91;
  sensorCelsius = (voltage * sensorCelsius * 100.0)/1024.0;

  // if there's incoming data from the net connection.
  // send it out the serial port. This is for debugging
  // purposes only:
  if (client.available()) {
    char c = client.read();
    Serial.print(c);
  }

  // if there's no net connection, but there was one last time
  // through the loop, then stop the client:
  if (!client.connected() && lastConnected) {
    Serial.println();
    Serial.println("disconnecting.");
    client.stop();
  }

  // if you're not connected, and ten seconds have passed since
  // your last connection, then connect again and send data:
  if(!client.connected() && (millis() - lastConnectionTime > postingInterval)) {
    sendData(sensorCelsius);
  }
  // store the state of the connection for next time through
  // the loop:
  lastConnected = client.connected();
}

// this method makes a HTTP connection to the server:
void sendData(int thisData) {
  // if there's a successful connection:
  if (client.connect()) {
    Serial.print("Temperature: ");
    Serial.println(thisData);
    Serial.println("connecting...");
    // send the HTTP PUT request.
    // fill in your feed address here
    // example: client.print("PUT /v2/feeds/37040/datastreams/due HTTP/1.1n");
    client.print("PUT /v2/feeds/YOUR_FEED_HERE/datastreams/YOUR_ID_STREAM_HERE HTTP/1.1n");
    client.print("Host: api.pachube.comn");
    // fill in your Pachube API key here:
    client.print("X-PachubeApiKey: YOUR_API_KEY_HEREn");
    client.print("Content-Length: ");

    // calculate the length of the sensor reading in bytes:
    int thisLength = getLength(thisData);
    client.println(thisLength, DEC);

    // last pieces of the HTTP PUT request:
    client.print("Content-Type: text/csvn");
    client.println("Connection: closen");

    // here's the actual content of the PUT request:
    client.println(thisData, DEC);

    // note the time that the connection was made:
    lastConnectionTime = millis();
  }
  else {
    // if you couldn't make a connection:
    Serial.println("connection failed");
  }
}

// This method calculates the number of digits in the
// sensor reading.  Since each digit of the ASCII decimal
// representation is a byte, the number of digits equals
// the number of bytes:

int getLength(int someValue) {
  // there's at least one byte:
  int digits = 1;
  // continually divide the value by ten,
  // adding one to the digit count for each
  // time you divide, until you're at 0:
  int dividend = someValue /10;
  while (dividend > 0) {
    dividend = dividend /10;
    digits++;
  }
  // return the number of digits:
  return digits;
}
